Roof vents and a low intake are a sensible first step for a backyard greenhouse. During still, sunny weather, however, natural airflow may not remove warm air quickly enough. An exhaust fan adds a controlled way to move air, provided the greenhouse can admit fresh replacement air.
Here is a practical approach to estimating airflow and planning an installation without treating one fan size as universal.
When Should You Consider an Exhaust Fan?
Start by opening and checking the existing vents. Measure temperature at plant height on sunny days and compare it with the outdoor temperature. If the greenhouse repeatedly overheats with its passive openings fully usable, a fan may help. Dense shade cloth, blocked vents or inadequate intake area should be addressed as part of the same decision.
A fan cannot cool the air below the temperature of the air entering from outside by ventilation alone. Shade can reduce solar gain; a fan removes heat that has already entered.
What Does CFM Mean?
CFM means cubic feet of air per minute. It describes airflow, usually measured under stated test conditions. A simple starting estimate is:
Greenhouse volume (ft³) = length (ft) × width (ft) × average interior height (ft).
Starting airflow (CFM) = greenhouse volume (ft³) ÷ target exchange time (minutes).
For example, a 6 × 8 ft footprint with an assumed average interior height of 6 ft has an estimated volume of 288 ft³ (about 8.2 m³). A one-minute exchange target produces a starting figure of 288 CFM (about 490 m³/h). The assumed height is only an example; measure your own greenhouse before buying equipment.
This arithmetic is a first pass, not a promise of cooling. Screens, shutters, ducting, wind pressure and an undersized intake can reduce installed airflow. Fan performance curves and local climate matter, as do the fan's noise, weather protection and electrical rating.
Where Should the Fan and Intake Go?

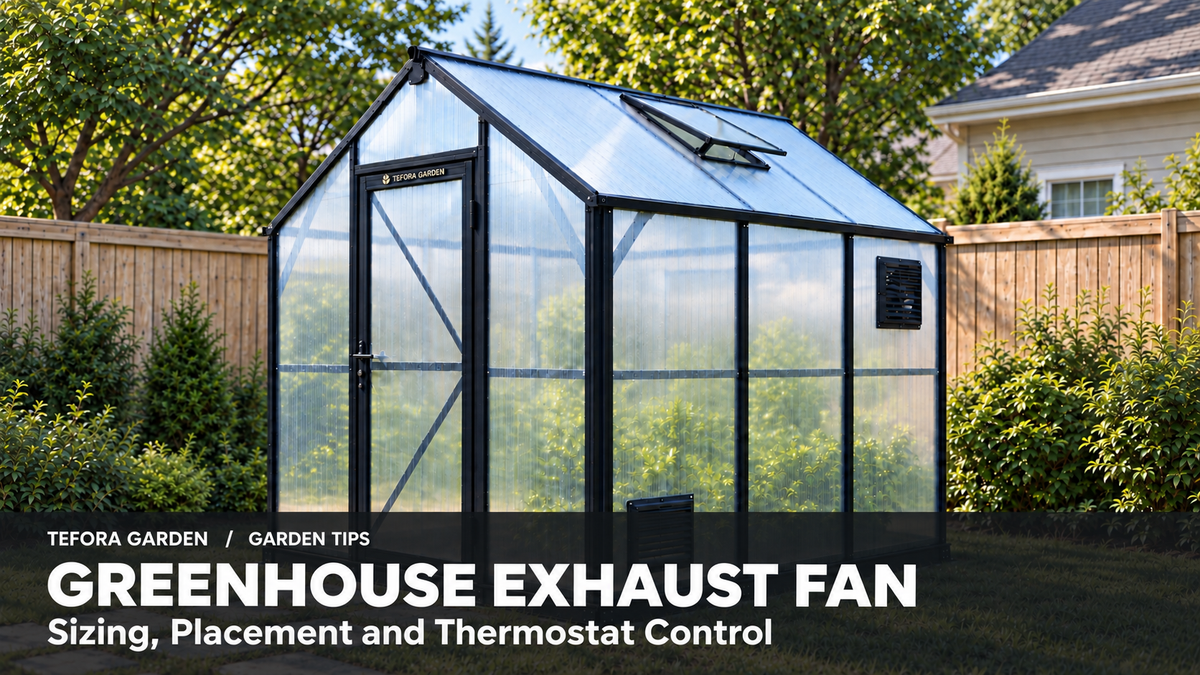

Mount the exhaust fan relatively high where warm air collects. Provide an appropriately sized intake lower down, ideally across the growing space rather than immediately beside the fan. That arrangement encourages incoming air to pass through the greenhouse before leaving.
Check the manufacturer's free-area requirement for the intake. An insect screen, louvre or shutter reduces its effective open area. If plants or shelves later cover the opening, the original sizing no longer describes the operating installation.
Why Use a Thermostat?
A thermostat can start the fan when the interior reaches a chosen temperature and stop it after conditions improve. Choose a controller and fan rated for their actual outdoor or greenhouse environment. Place the sensor at plant height, out of direct sun and away from the fan discharge; otherwise it may read a hot panel or cool draft rather than the crop area.
Set the switching range based on what you are growing. Check the readings over several days, because a greenhouse that behaves well on a breezy day may overheat during a calm afternoon. A controller with an appropriate switching gap helps avoid rapid on-off cycling.
How Should a Fan Attach to a Polycarbonate Greenhouse?
Do not hang an ordinary fan directly from a 6 mm twin-wall polycarbonate panel. The panel is glazing, not a structural mounting bracket. A purpose-designed reinforced subframe or other manufacturer-approved support should carry the fan's weight and vibration while keeping the glazing weather tight.
A fan-ready concept could include a fixed reinforced frame, a sealed polycarbonate insert for everyday use and a pre-cut metal mounting plate for a compatible fan. Confirm the finished opening, outside frame dimensions, fastener spacing, load path and weather seal before selecting the fan. A nominal 10-inch fan does not fit every 10-inch opening.
What About Solar-Powered Fans?
A solar-powered fan may be useful where wiring is impractical, but its output can change with sunlight, panel angle, battery capacity and controller design. Compare its actual airflow under the relevant operating conditions with your ventilation target. If plants depend on airflow during cloudy, humid or very hot periods, plan for those operating conditions too.
Installation and Operating Checklist
- Measure the greenhouse volume rather than using footprint alone.
- Check fan performance at the resistance of screens, shutters and vents.
- Provide a clear lower intake with sufficient free area.
- Mount the fan to a supported frame, not unsupported glazing.
- Keep electrical components suitable for moisture and the installation location.
- Test the thermostat with a sensor at plant height.
- Confirm roof vents and shade cloth can operate safely alongside the fan.
Final Thoughts
Choose a greenhouse exhaust fan as part of a complete airflow system. A volume calculation gives you a starting CFM, while the intake, mounting details, controls and real-world operating conditions determine whether the installation works for your plants.
